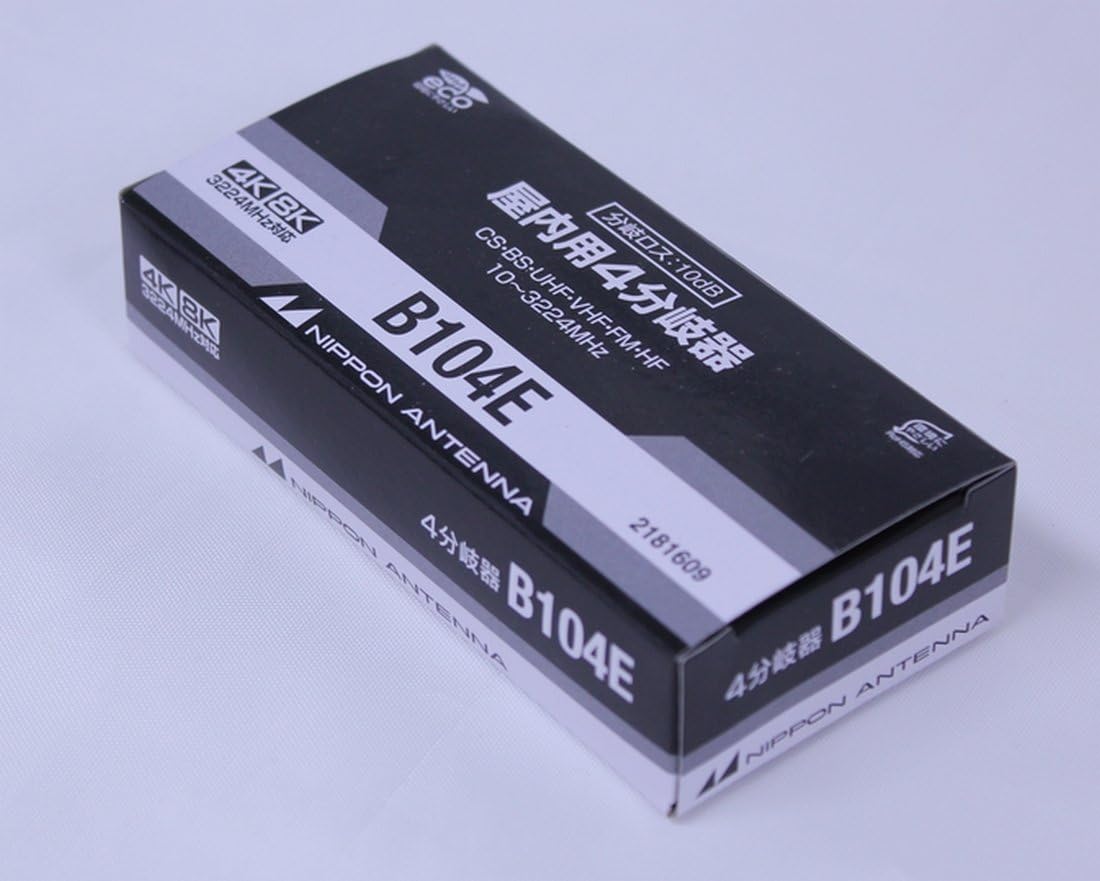

Japanese Antenna B104E 4 Splitter (10 dB 3224 MHz Compatible)

Use for 4 branches of TV radio waves indoors. (Unlike the splitter, it will draw the specified amount of signal. )

• Uses: Use for 4 branches of radio waves on TV. (Unlike the splitter, it will draw the specified amount of signal. )
• [Features] Zinc die-cast with integrated connection and housing, and the back case is pressure-fitted It has a high shielding effect and prevents signal leakage and leakage. Mounting screws that are temporarily fixed on the main body make it easy to install on the wall
• [Features] The F seat terminal can also be attached to a 7C connector. (*If the outer diameter of the core wire is thicker than 0.06 inch (1.5 mm), please use a connecting plug with pins. )
• Features: The yellow insulation allows you to see the input terminal at a glance. By attaching the main unit side-by-side, it can be installed in a space saving space
• [Performance] High performance 4 branch devices that support CS-IF bandwidth (10MHz - 3224MHz). Supports 4K 8K broadcast
• [Performance] Insertion loss: (222MHz-770MHz) 5.0dB (770MHz-2150MHz) 5.5-6.0dB Combined loss: (222MHz-770MHz) 12.5dB (770MHz-2150MHz) 13.0-15.0dB Current pass terminal: Input - Output (Max. 15 V / 0 .8A/AC30V/1A)
• Accessories: Mounting screws x 2 (pre-installed on the main unit), 5C F type fittings x 6, instruction manual (English language not guaranteed) x 1
